CSC-50
Semi-automatic Cartoning Machine (Vertical Type)
The cartoning equipment applies the vertical semi-automatic production operation. The equipment is suitable for more types with medium capacity products
It is widely applied for every product with cartoning procedure.
For those carton dimensions within machine applicable range, the correspondent mold and minor tuning is necessary for the different products.

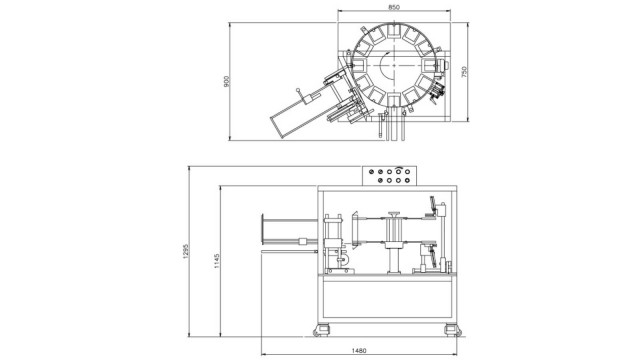

Layout
Specification
| Model | CSC-50 Semi-automatic Cartoning machine (Vertical Type ) |
|---|---|
| Working Capacity | 20-60 carton/min (Based on operator’s speed) |
| Carton size range (WxDxH) | 20-80 x 20-80 x 60-200 (mm) |
| Power Consumption | 220V single phase, 50/60HZ |
| Air Consumption | 90L/min @ 6 Bars |
| Machine Dimensions (LxWxH) | 1480x900x1295 (mm) |
| Machine Weight | 350KGS |

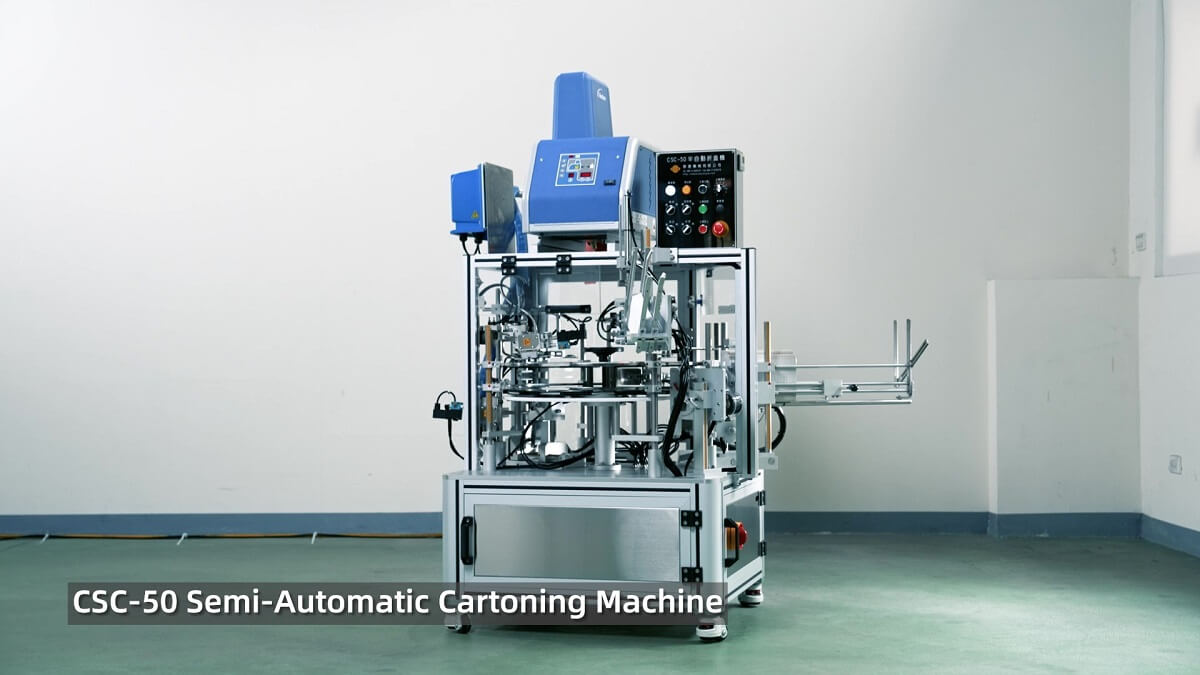

Video
